Overview

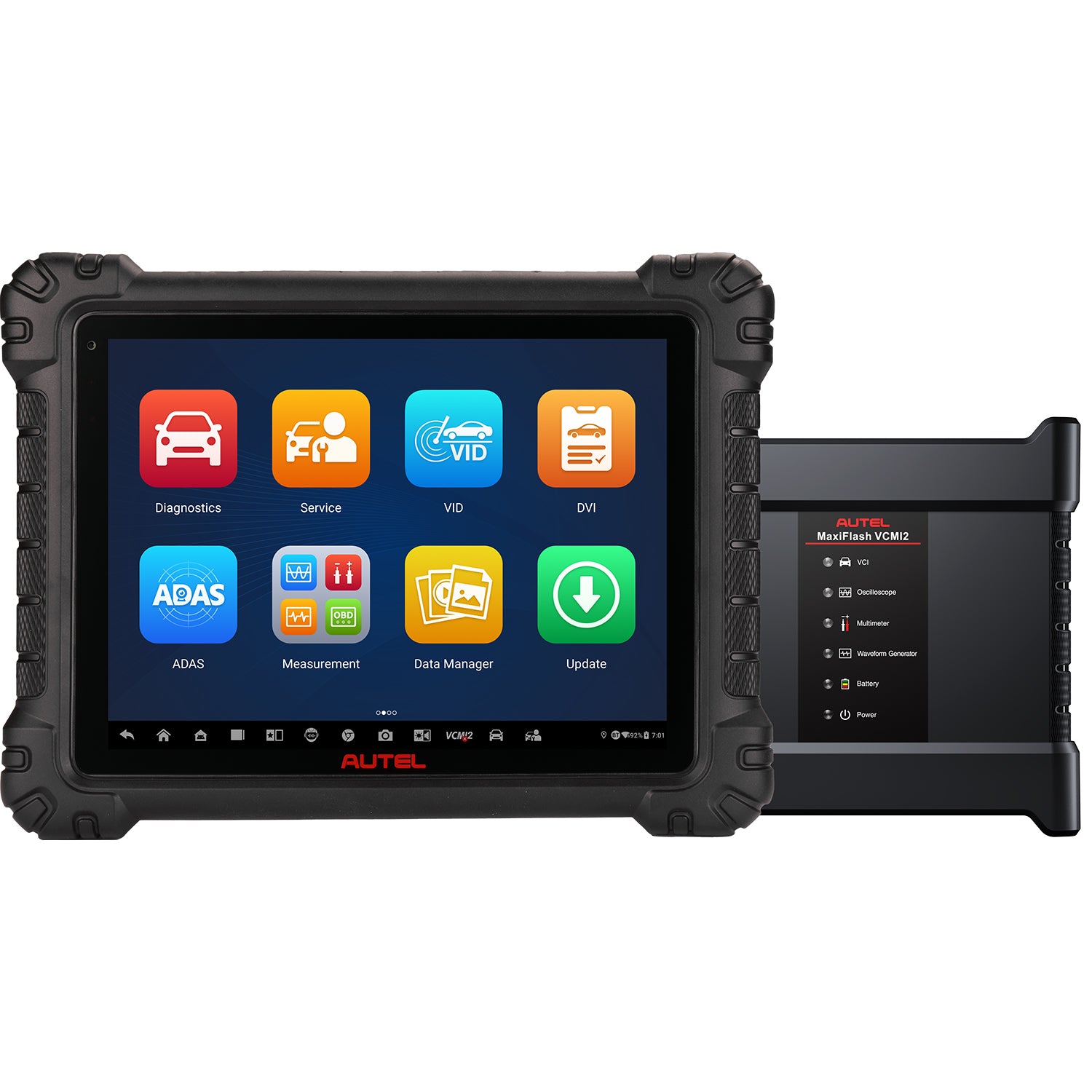

The Autel MS919 S2 extends beyond pure diagnostics by integrating a 6-in-1 VCMI2 module for oscilloscope, multimeter, waveform generation, CAN-Bus testing, and vehicle communication—all in one device. It retains the advanced software suite found across the S2 family, including Topology 3.0, enhanced data tools, Remote Expert, and full system diagnostics. This model is optimal for technicians who need to merge electrical signal analysis and modern diagnostics in a single tool.
Key Features & Functions
-

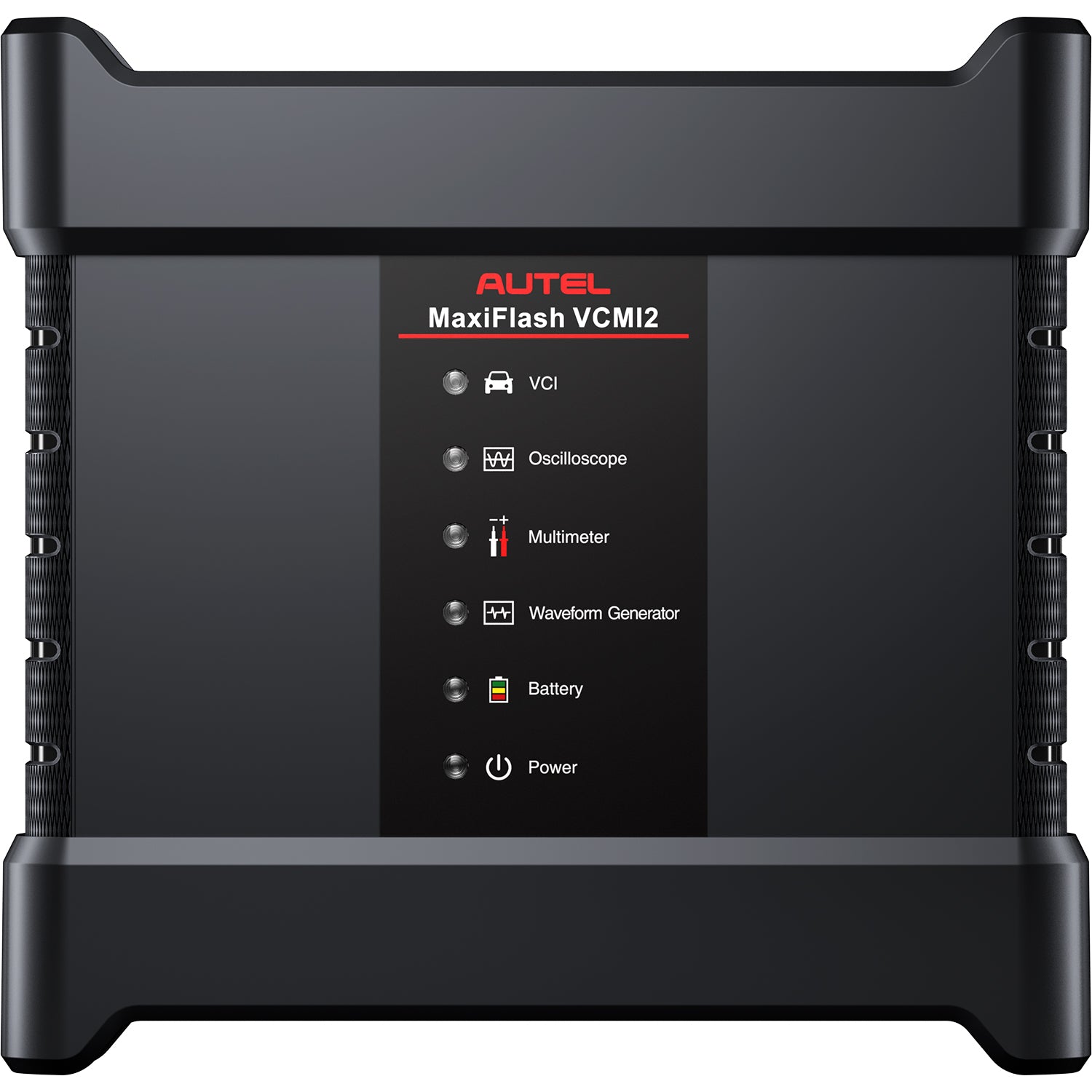

Integrated 6-in-1 VCMI2 Module: Combines functions including 4‑channel oscilloscope, multimeter, waveform generator, CAN-Bus tester, plus pass-thru J2534/DoIP support
-
Full-System Diagnostics & Coding: Read/erase codes, active tests, ECU programming, adaptations, hidden functions for complete module support.
-
Topology 3.0 & Module Ping: Visualization of ECU networks and real-time diagnostics across communication paths.
-
Enhanced Data Tools: Multi-PID overlays, split-screen live + scope view, Live Data Fusion, and reference sampling.
-
Remote Expert Enabled: Supports remote programming, module unlocks, and expert-led diagnostics over the cloud.
-
45+ Service & Reset Functions: Includes oil, TPMS, EPB, DPF, battery service, IMMO, etc. (same service suite as MS909 S2)
-
Security Gateway Support: Compatible with Mercedes, Nissan, VW/Audi, Stellantis via AutoAuth protocols.
-
Optional Upgrades: ADAS calibration, EV diagnostics, borescope input, extended VCI accessories.
Hardware & Specifications
| Specification |
MS919 S2 Detail |
| Display |
11" anti-glare touchscreen |
| Processor / Platform |
2.7 GHz 8‑core S2 hardware |
| Memory & Storage |
256 GB (typical S2 configuration) |
| Operating System |
Android 13 |
| Connectivity |
Wi-Fi 6, Bluetooth, USB-C |
| Interface |
MaxiFlash VCMI2 (wireless) with full test/signal modules |
| Battery |
High-capacity battery design (typical S2 spec) |
| Warranty & Updates |
1 year limited warranty + 1 year free software updates |

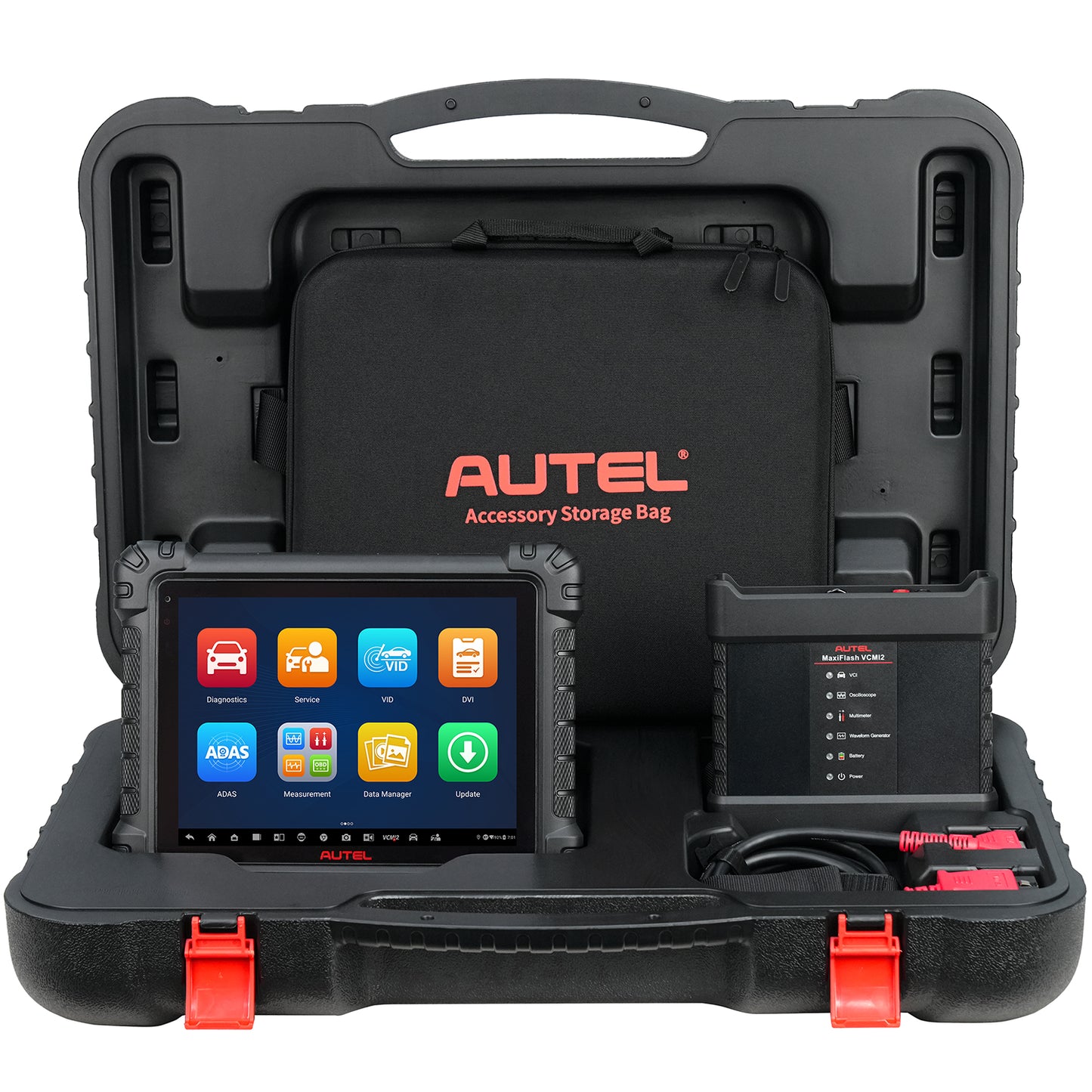

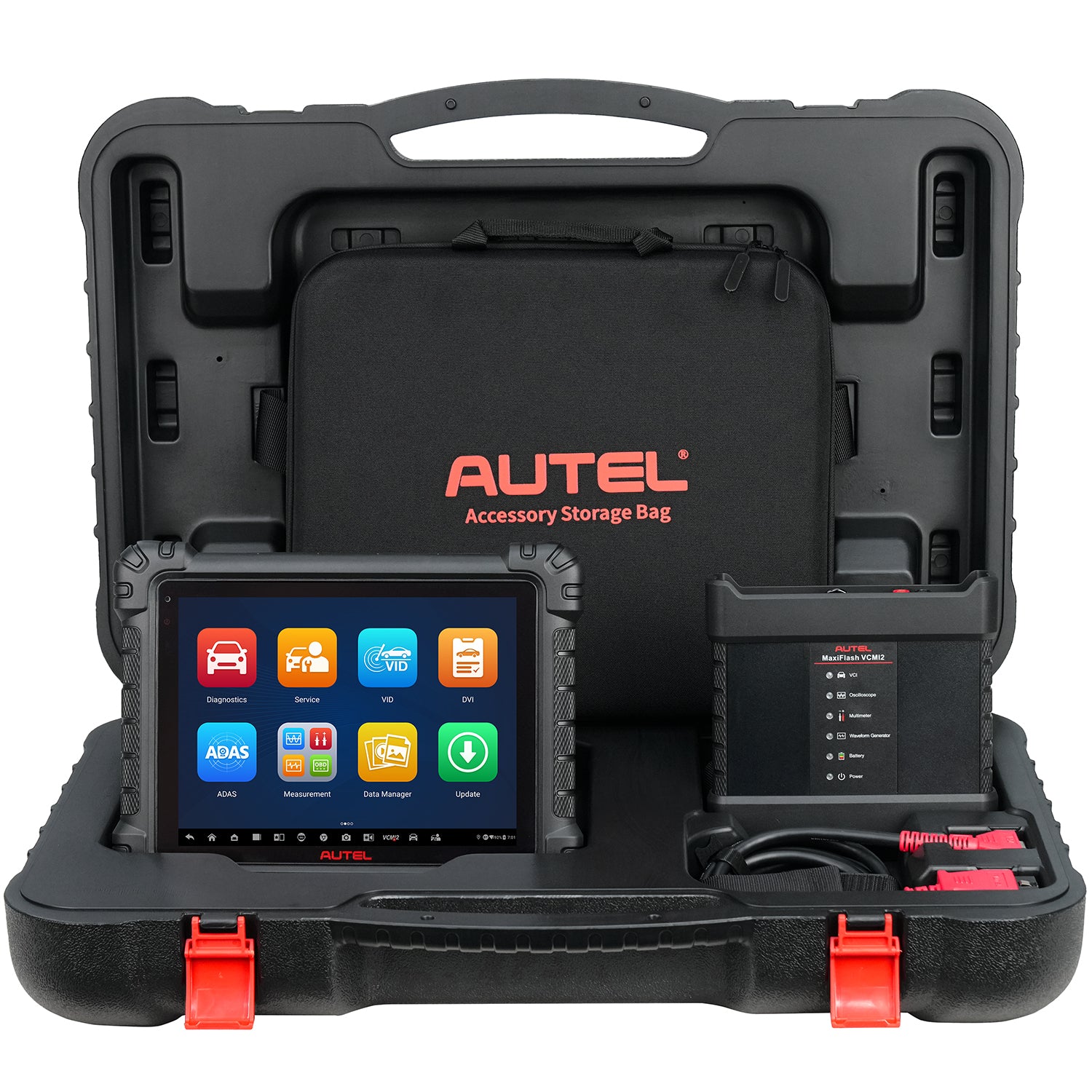

What’s in the Box

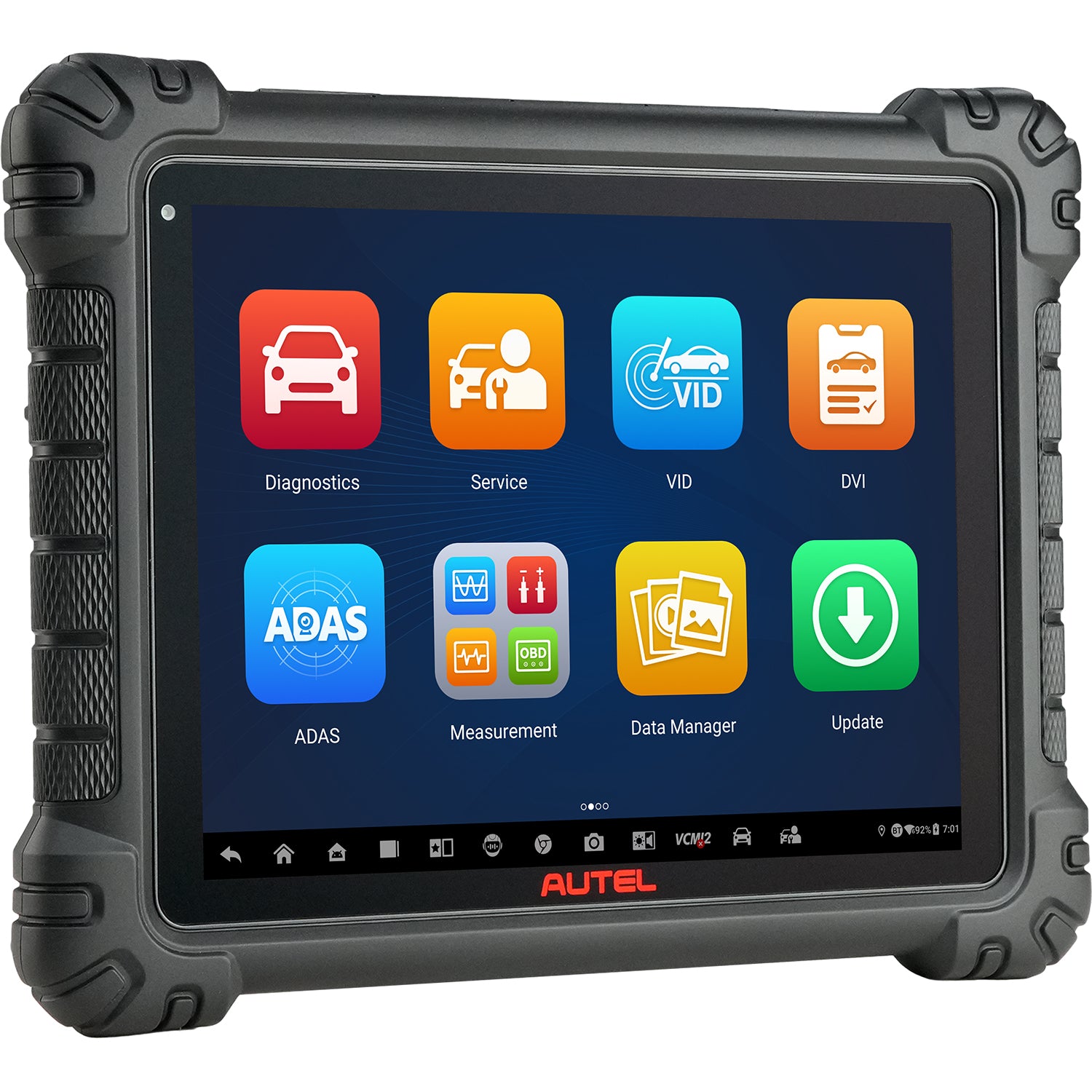

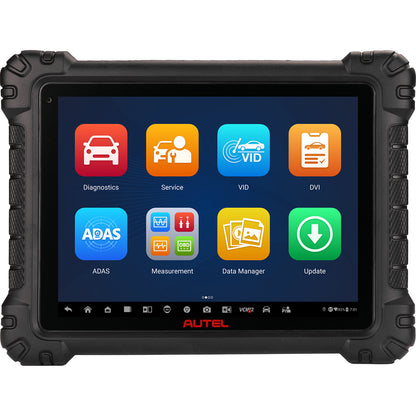

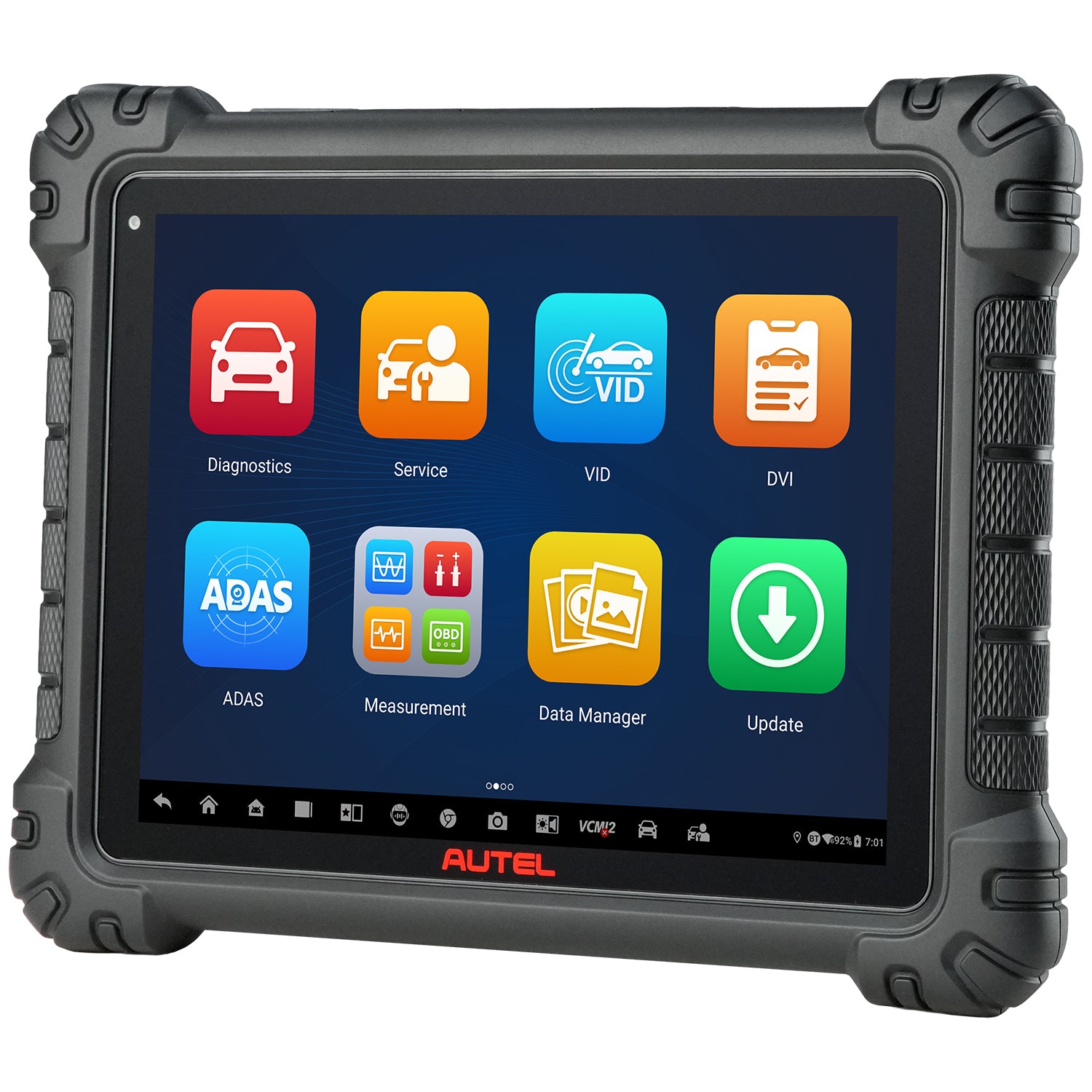

- MS919 S2 Diagnostic Tablet
- 6-in-1 MaxiFlash VCMI2 Interface
- Oscilloscope Probes (4 channels), Multimeter Leads
- OBDII Cable, USB-C Cable, Power Adapter
- Rugged Carrying Case & Quick Start Guide
- 1 Year Free Software Updates & Manufacturer Warranty
Why Choose the MS919 S2
- Offers an all-in-one diagnostic and signal analysis setup—no need for separate scopes or multimeters.
- Ideal for EV work, sensor diagnostics, communication faults, and advanced module programming where real-time waveform data matters.
- Remote Expert support combined with signal-level tools places high-end capability directly on the tablet.
- Advanced data tools (split-screen, PID fusion, topology) help accelerate diagnostics across systems.
Important Notes & Considerations
- Some advanced functions like ADAS calibration or EV diagnostics may require additional software or accessories.
- Use stable power (12V supply) and preferably wired communication when performing module flashing or programming.
- Remote Expert sessions depend on reliable network connectivity and may incur additional service charges.
- Be aware that access to certain OEM security gateways (e.g., VW/Audi) may require in-tool token purchases or AutoAuth subscription.
